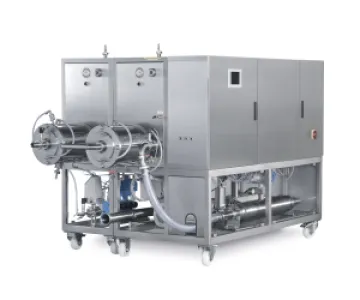

UNI-MIX and UNI-MIX 2K are ideal production machines

when it comes to processing large quantities. They are ideal for use in the carpet, textile and nonwoven industries.

• Effective and precise production of large quantities of high-grade products to you specified pecipe

• Optimised construction, designed for the use of three and more pumps

• An optional, separately driven mixing head expands the output range

• Numerous possible variations of mixing heads, flow sensors, cleaning systems, seals, control systems and monitors

• The optional special equipment ranges from specialised seals for mixing heads and pumps, various automatic systems such as volumetric or gravimetric flow sensors and foam height regulators (MA2) to temperature-controlled mixing heads

Dimensions (L, W, H): 2,000 x 1,000 x 1,820 mm
Output range : from 650 – 1,300 kg/h
to 600 – 10,000 kg/h
or according to specification

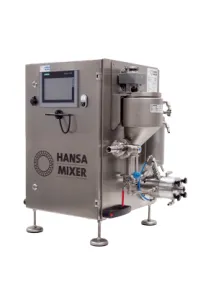

Putting foam quality to the test - with our unique laboratory test machine

"Try Before Buy": Test your processes before you invest

Precision is crucial in the development and production of foam products - both in the formulation and in the process. Our innovative laboratory and test machine offers you the opportunity to realistically simulate your foam processes and comprehensively test your product quality before purchasing a production machine. Thanks to our exclusive “Try Before Buy” program, you minimize investment risks, gain important insights and secure long-term competitive advantages. With a laboratory and test machine, you can rely on greater planning security, efficiency, and product quality.

Key features - your benefits at a glance:

• Experimental setup: Research new recipes, process parameters and material combinations - under controlled but practical conditions. Ideal for research & development and feasibility studies.

• Process identification and optimization: Determine the optimum production process for your specific requirements. Avoid bad investments and minimize your time-to-market.

• Design efficient industrialization: Test your foam products under real conditions and lay the foundation for smooth industrial implementation.

• Cost savings: Targeted preliminary tests save you time, material and unnecessary machine adjustments during subsequent operation.

• Unique position on the market: Benefit from a testing option that is only available from us in this form - with comprehensive technical support from our team of experts.

Two flexible test options - here's how it works:

1. Tests at our technical center/laboratory:
   Come to us and test your materials and processes together with our specialists at our premises. Alternatively, you can send us your products - we will carry out the tests for you and provide you with well-founded evaluations.

2. rental machine at your premises:
   Would you like to test under real production conditions? No problem! For a rental fee, we provide you with the laboratory and test machine directly at your site for a defined period of time - without any long-term commitment, but with maximum knowledge gain.

The laboratory and testing machine is suitable for the following areas of application:

• Product development in the non-food sector

• Research

• Teaching and training purposes

• Production of small quantities

Technical data

• Reliable scale-up of foam quality

• Foam densities between 50 and 900 g/l

• Reproducible results by means of input parameters such as foam density (overrun), product thickness, throughput, etc.

• Temperature-controlled mixing head with double action mechanical seal

• Easy to clean and maintain

• PLC-controlled regulator with fully automated air volume control and user-friendly touch panel

• Gasket-free eccentric screw pump with temperature controlled storage tank

Dimensions (L, W, H): 650 x 450 x 600 mm
Output range : 1 – 12 kg/h to 2-25kg/h

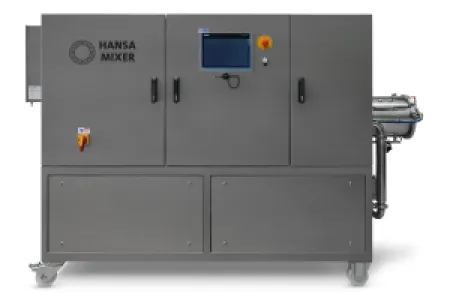

Compact-Mix

Large production machine with up to three pumps built into the frame. Ideal areas of use are both the carpet and chemical industries as well as textile finishing, flake or latex mattress industries.

• Dynamic stainless steel-mixing head available in three configurations: 570, 990 or 1,410 pins

• Continuous electrically controlled RPM adjustment (frequency converter) includes digital display

• Non-contacting Hansa Mixershaft seal - ga which is rewuested for the foaming process is also used as sealing material. In case of machine downtimes. Lip type seal helps to prevent the medium from penetrating into sealed areas

• Exact injection of numerous additvies into the mixing head - or direct feed - by additional dosing pumps

• Effective production and precise true-torecipe results, thanks to PLC-control

• Temperature-controlled mixing head (coolable/heatable) can be obtained optionally

Dimensions (L, W, H): 2,000 x 810 x 1,700 mm
Output range : from 50 – 400 kg/h
to 300 – 2,000 kg/h

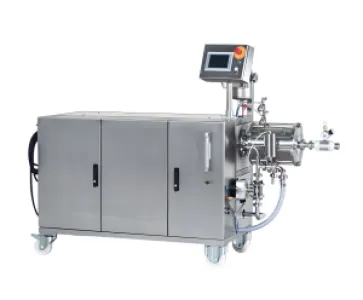

The ECO-MIX is an affordable, dynamic foam generator

for continuously foaming pumpable and low-viscosity media from all areas of non-food industries. The ECO-MIX can be used ideally in the chemical, carpet and textile finishing industries.

• High-grade basic equipment with automated, computer-processor controlled regulation of air volume

• Numerous possible variations of mixing heads, flow sensors, seals, control systems and monitors

• Automatic gas dosing guarantees uniform foam density

• Product specific shaft seal using mechanical seals with pressure system

• Digital display: air volume /foam weight

• Automatic foam height control (MA2) available as an option

• The generous design of the ECO-TOP-MIX also offers the installation of additional pumps and lines (e.g. for CIP-cleaning)

Dimensions (L, W, H): 1,850 x 700 x 1,650 mm
Output range : from 20 – 200 kg/h
to 120 – 1.000 kg/h
